pacman::p_load(tidyverse, sf, httr, tmap, performance, ggpubr)In-class Exercise 4: Geospatial Data Science with R
Overview
In this in-class exercise, we will gain hands-on experience on the following tasks:
performing, geocoding using data downloaded from data.gov.sg
calibrating Geographically Weighted Poisson Regression
Getting Started
Geocoding using SLA API
Geocoding is the process of taking a aspatial description of a location, such as an address or postcode, and returning geographic coordinates, frequently latitude/longitude pair, to identify a location on the Earth’s surface.
Singapore Land Authority of Singapore (SLA) supports an online geocoding service called OneMap API. The Search API looks up the address data or 6-digit postal code for an entered value. It then returns both latitude, longitude and x,y coordinates of the searched location.
To get started, download the General Information of school data sets of School Directory and Information from data.gov.sg.
url <- "https://www.onemap.gov.sg/api/common/elastic/search"
csv <- read_csv("data/aspatial/Generalinformationofschools.csv")
postcodes <- csv$postal_code #read the csv, extract only the postal code
found <- data.frame()
not_found <- data.frame()
for (postcode in postcodes) {
query <- list('searchVal'=postcode, 'returnGeom'='Y', 'getAddrDetails'='Y', 'pageNum'='1')
res <- GET(url, query=query)
if ((content(res)$found)!=0){
found <- rbind(found, data.frame(content(res))[4:13])
} else {
not_found = data.frame(postcode)
}
}Next, the code chunk below will be used to combine both found and not_found data.frames into a single tibble data.frame called merged. At the same time, we will write merged and not_found tibble data.frames into csv file format for subsequent use.
merged = merge(csv, found, by.x = 'postal_code', by.y = "results.POSTAL", all = TRUE)
write.csv(merged, file = "data/aspatial/schools.csv")
write.csv(not_found, file = "data/aspatial/not_found.csv")
Note
With the help of Google Map, locate the location information of the ungeocoded school by using it’s postal code
Update the results.LATITUDE and results.LONGTITUDE fields of the ungeocoded record in schools.csv manually
Import schools.csv
The code chunk below is used to import the schools.csv file, rename results.LATITUDE and results.LONGTITUDE to latitude and longitude respectively and retain only postal_code, school_name, latitude, longtitude in schools tibble data.frame.
schools <- read_csv("data/aspatial/schools.csv") %>%
rename(latitude = results.LATITUDE,
longitude = results.LONGITUDE) %>%
select(postal_code, school_name, latitude, longitude)Converting an aspatial data into sf tibble data.frame
Next, we will convert the aspatial data into a simple feature tibble data.frame called schools_sf.
schools_sf <- st_as_sf(schools,
coords = c("longitude", "latitude"),
crs=4326) %>% #wgs84
st_transform(crs=3414)Plotting a point simple feature layer
To ensure that schools_sf tibble data.frame has been projected and converted correctly. we can plot the schools data point for visual inspection.
tmap_mode("view")
tm_shape(schools_sf) +
tm_dots() +
tm_view(set.zoom.limits = c(11,14))tmap_mode("plot")Import mpsz
mpsz <- st_read(dsn = "data/geospatial",
layer = "MPSZ-2019") %>%
st_transform(crs = 3414)Reading layer `MPSZ-2019' from data source
`C:\Users\Dabbie Neo\Desktop\Geospatial_Analytics\dneoo\ISSS624\In-class_Ex\In-class_Ex04\data\geospatial'
using driver `ESRI Shapefile'
Simple feature collection with 332 features and 6 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: 103.6057 ymin: 1.158699 xmax: 104.0885 ymax: 1.470775
Geodetic CRS: WGS 84Count number of schools within each planning subzone
mpsz$`SCHOOL_COUNT`<- lengths(
st_intersects(
mpsz,schools_sf))It is always a good practice to examine the summary statistics of the derived variable.
summary(mpsz$SCHOOL_COUNT) Min. 1st Qu. Median Mean 3rd Qu. Max.
0.000 0.000 0.000 1.054 2.000 12.000 Import the business location
business_sf <- st_read(dsn = "data/geospatial",
layer = "Business")Reading layer `Business' from data source
`C:\Users\Dabbie Neo\Desktop\Geospatial_Analytics\dneoo\ISSS624\In-class_Ex\In-class_Ex04\data\geospatial'
using driver `ESRI Shapefile'
Simple feature collection with 6550 features and 3 fields
Geometry type: POINT
Dimension: XY
Bounding box: xmin: 3669.148 ymin: 25408.41 xmax: 47034.83 ymax: 50148.54

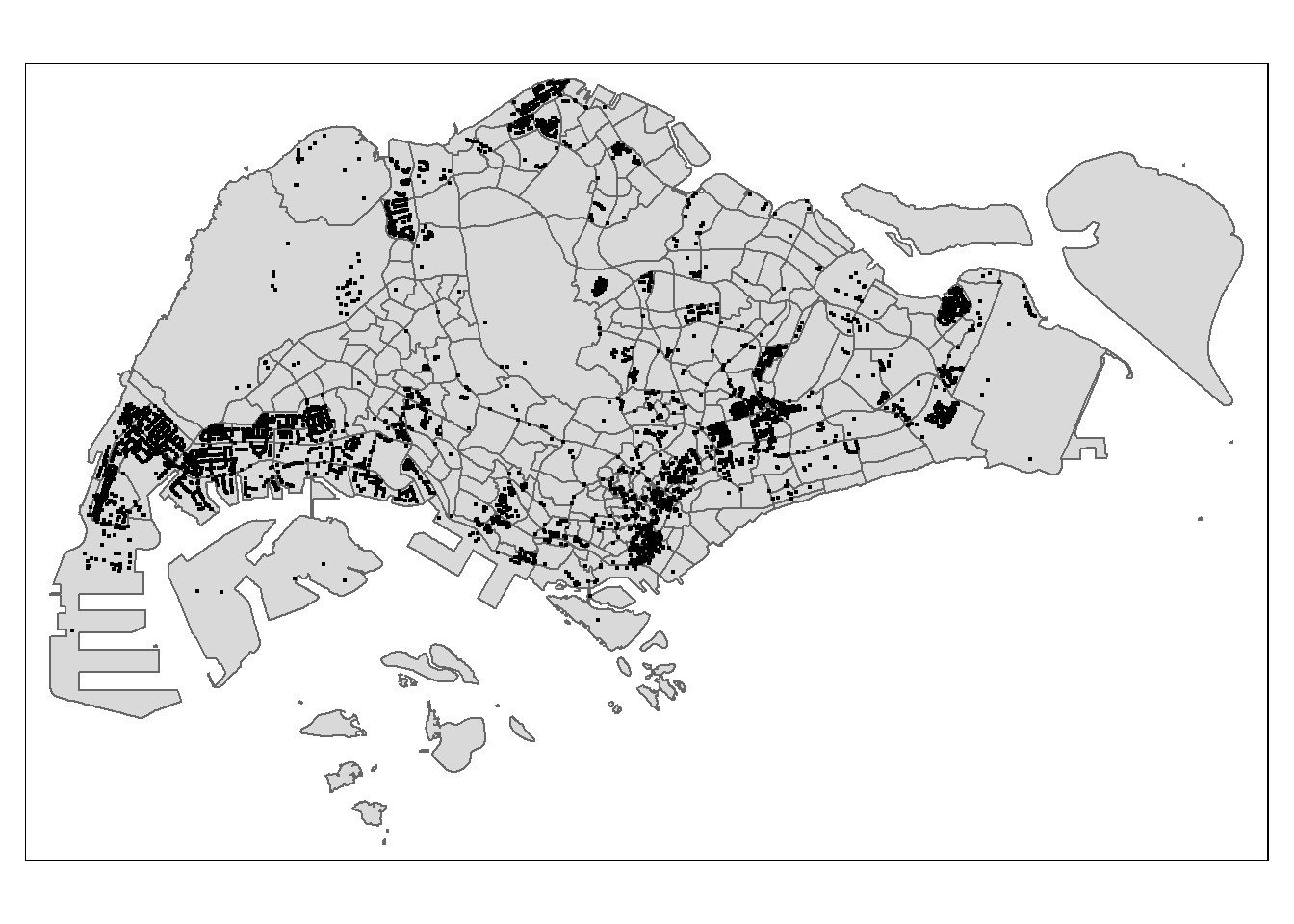

Projected CRS: SVY21 / Singapore TMtmap_options(check.and.fix = TRUE) # fix unclean polygons
tm_shape(mpsz) + #to plot the boundary
tm_polygons() +
tm_shape(business_sf) +
tm_dots()
Now, we will append,
#flow_data <- flow_data %>%
# left_join(mpsz_tidy,
#
#by = c("DESTIN_SZ" = "SUBZONE_C"))mpsz$`BUSINESS_COUNT`<- lengths(
st_intersects(
mpsz,business_sf))flow_data <- read_rds("data/rds/flow_data_tidy.rds")
glimpse(flow_data)Rows: 14,734
Columns: 13
$ ORIGIN_SZ <chr> "AMSZ01", "AMSZ01", "AMSZ01", "AMSZ01", "AMSZ01", "AMS…
$ DESTIN_SZ <chr> "AMSZ01", "AMSZ02", "AMSZ03", "AMSZ04", "AMSZ05", "AMS…
$ MORNING_PEAK <dbl> 1998, 8289, 8971, 2252, 6136, 2148, 1620, 1925, 1773, …
$ dist <dbl> 50.0000, 810.4491, 1360.9294, 840.4432, 1076.7916, 805…
$ ORIGIN_AGE7_12 <dbl> 310, 310, 310, 310, 310, 310, 310, 310, 310, 310, 310,…
$ ORIGIN_AGE13_24 <dbl> 710, 710, 710, 710, 710, 710, 710, 710, 710, 710, 710,…
$ ORIGIN_AGE25_64 <dbl> 2780, 2780, 2780, 2780, 2780, 2780, 2780, 2780, 2780, …
$ DESTIN_AGE7_12 <dbl> 310.00, 1140.00, 1010.00, 980.00, 810.00, 1050.00, 420…
$ DESTIN_AGE13_24 <dbl> 710.00, 2770.00, 2650.00, 2000.00, 1920.00, 2390.00, 1…
$ DESTIN_AGE25_64 <dbl> 2780.00, 15700.00, 14240.00, 11320.00, 9650.00, 12460.…
$ SCHOOL_COUNT <dbl> 0.99, 2.00, 2.00, 1.00, 3.00, 2.00, 0.99, 0.99, 3.00, …
$ RETAIL_COUNT <dbl> 1.00, 0.99, 6.00, 0.99, 0.99, 0.99, 1.00, 117.00, 0.99…
$ geometry <LINESTRING [m]> LINESTRING (29501.77 39419...., LINESTRING …flow_data$FlowNoIntra <- ifelse(
flow_data$ORIGIN_SZ == flow_data$DESTIN_SZ,
0, flow_data$MORNING_PEAK)
flow_data$offseet <- ifelse(
flow_data$ORIGIN_SZ == flow_data$DESTIN_SZ,
0.000001,1)
inter_zonal_flow <- flow_data %>%
filter(FlowNoIntra >0)
inter_zonal_flow <- inter_zonal_flow %>%
rename(TRIPS = MORNING_PEAK,
DIST = dist)Origin (Production) constrained SIM
In this section, we will fit an origin constrained SIM by using the code chunk below.
orcSIM_Poisson <- glm(formula = TRIPS ~
ORIGIN_SZ +
log(SCHOOL_COUNT) +
log(RETAIL_COUNT) +
log(DIST) -1, #remove away the intersect
family = poisson(link = "log"),
data = inter_zonal_flow,
na.action = na.exclude)
summary(orcSIM_Poisson)
Call:
glm(formula = TRIPS ~ ORIGIN_SZ + log(SCHOOL_COUNT) + log(RETAIL_COUNT) +
log(DIST) - 1, family = poisson(link = "log"), data = inter_zonal_flow,
na.action = na.exclude)
Deviance Residuals:
Min 1Q Median 3Q Max
-250.52 -17.17 -7.98 1.24 470.15
Coefficients:
Estimate Std. Error z value Pr(>|z|)
ORIGIN_SZAMSZ01 19.8739840 0.0047627 4172.84 <2e-16 ***
ORIGIN_SZAMSZ02 20.5902203 0.0042786 4812.33 <2e-16 ***
ORIGIN_SZAMSZ03 20.2327026 0.0045531 4443.70 <2e-16 ***
ORIGIN_SZAMSZ04 19.7744438 0.0049837 3967.79 <2e-16 ***
ORIGIN_SZAMSZ05 19.6574529 0.0056396 3485.61 <2e-16 ***
ORIGIN_SZAMSZ06 19.9659115 0.0048946 4079.16 <2e-16 ***
ORIGIN_SZAMSZ07 18.6746164 0.0096316 1938.90 <2e-16 ***
ORIGIN_SZAMSZ08 19.2701601 0.0090776 2122.82 <2e-16 ***
ORIGIN_SZAMSZ09 19.9889467 0.0052858 3781.64 <2e-16 ***
ORIGIN_SZAMSZ10 20.3422035 0.0045778 4443.62 <2e-16 ***
ORIGIN_SZAMSZ11 18.3944113 0.0129212 1423.58 <2e-16 ***
ORIGIN_SZAMSZ12 18.3484209 0.0109652 1673.33 <2e-16 ***
ORIGIN_SZBDSZ01 20.9668587 0.0043388 4832.36 <2e-16 ***
ORIGIN_SZBDSZ02 20.4059518 0.0050601 4032.75 <2e-16 ***
ORIGIN_SZBDSZ03 20.6725514 0.0045276 4565.93 <2e-16 ***
ORIGIN_SZBDSZ04 21.6703853 0.0038930 5566.44 <2e-16 ***
ORIGIN_SZBDSZ05 20.7497445 0.0046085 4502.46 <2e-16 ***
ORIGIN_SZBDSZ06 20.9119361 0.0046432 4503.77 <2e-16 ***
ORIGIN_SZBDSZ07 18.9749815 0.0097896 1938.28 <2e-16 ***
ORIGIN_SZBDSZ08 19.1933901 0.0091312 2101.95 <2e-16 ***
ORIGIN_SZBKSZ01 19.5422606 0.0064732 3018.96 <2e-16 ***
ORIGIN_SZBKSZ02 20.1748913 0.0050076 4028.89 <2e-16 ***
ORIGIN_SZBKSZ03 20.3984624 0.0047226 4319.35 <2e-16 ***
ORIGIN_SZBKSZ04 19.6182212 0.0059652 3288.76 <2e-16 ***
ORIGIN_SZBKSZ05 19.6033818 0.0063181 3102.74 <2e-16 ***
ORIGIN_SZBKSZ06 19.7145224 0.0056372 3497.20 <2e-16 ***
ORIGIN_SZBKSZ07 20.4237448 0.0041912 4873.03 <2e-16 ***
ORIGIN_SZBKSZ08 19.7992538 0.0050405 3928.02 <2e-16 ***
ORIGIN_SZBKSZ09 19.7821586 0.0055558 3560.66 <2e-16 ***
ORIGIN_SZBLSZ01 17.7977276 0.0149058 1194.01 <2e-16 ***
ORIGIN_SZBLSZ02 17.4287491 0.0192364 906.03 <2e-16 ***
ORIGIN_SZBLSZ03 16.5884288 0.0459848 360.74 <2e-16 ***
ORIGIN_SZBLSZ04 17.7851626 0.0232823 763.89 <2e-16 ***
ORIGIN_SZBMSZ01 20.0751840 0.0052887 3795.89 <2e-16 ***
ORIGIN_SZBMSZ02 18.6956140 0.0066656 2804.80 <2e-16 ***
ORIGIN_SZBMSZ03 19.3204425 0.0054755 3528.56 <2e-16 ***
ORIGIN_SZBMSZ04 19.4724220 0.0049390 3942.59 <2e-16 ***
ORIGIN_SZBMSZ05 16.9581801 0.0168804 1004.61 <2e-16 ***
ORIGIN_SZBMSZ06 16.9898638 0.0181852 934.27 <2e-16 ***
ORIGIN_SZBMSZ07 19.2868403 0.0056231 3429.91 <2e-16 ***
ORIGIN_SZBMSZ08 19.1477543 0.0055918 3424.28 <2e-16 ***
ORIGIN_SZBMSZ09 18.7564539 0.0086298 2173.46 <2e-16 ***
ORIGIN_SZBMSZ10 18.3617854 0.0089250 2057.35 <2e-16 ***
ORIGIN_SZBMSZ11 18.9167941 0.0063340 2986.54 <2e-16 ***
ORIGIN_SZBMSZ12 18.7874661 0.0093024 2019.63 <2e-16 ***
ORIGIN_SZBMSZ13 19.5654046 0.0057517 3401.70 <2e-16 ***
ORIGIN_SZBMSZ14 19.0685619 0.0063346 3010.24 <2e-16 ***
ORIGIN_SZBMSZ15 19.4403124 0.0058147 3343.30 <2e-16 ***
ORIGIN_SZBMSZ16 18.4469203 0.0092638 1991.28 <2e-16 ***
ORIGIN_SZBMSZ17 18.3430175 0.0157692 1163.22 <2e-16 ***
ORIGIN_SZBPSZ01 20.1806714 0.0053660 3760.81 <2e-16 ***
ORIGIN_SZBPSZ02 19.8116707 0.0061485 3222.19 <2e-16 ***
ORIGIN_SZBPSZ03 19.8467602 0.0059769 3320.57 <2e-16 ***
ORIGIN_SZBPSZ04 20.4613200 0.0048398 4227.72 <2e-16 ***
ORIGIN_SZBPSZ05 20.5379711 0.0043769 4692.39 <2e-16 ***
ORIGIN_SZBPSZ06 18.8948034 0.0093668 2017.21 <2e-16 ***
ORIGIN_SZBPSZ07 19.4104568 0.0087961 2206.70 <2e-16 ***
ORIGIN_SZBSSZ01 20.0139503 0.0056561 3538.45 <2e-16 ***
ORIGIN_SZBSSZ02 20.2543885 0.0047198 4291.38 <2e-16 ***
ORIGIN_SZBSSZ03 19.5428803 0.0052713 3707.41 <2e-16 ***
ORIGIN_SZBTSZ01 20.0198045 0.0058541 3419.77 <2e-16 ***
ORIGIN_SZBTSZ02 19.3618525 0.0081472 2376.51 <2e-16 ***
ORIGIN_SZBTSZ03 19.5883853 0.0068935 2841.59 <2e-16 ***
ORIGIN_SZBTSZ04 18.7720238 0.0103909 1806.58 <2e-16 ***
ORIGIN_SZBTSZ05 18.8069026 0.0120628 1559.08 <2e-16 ***
ORIGIN_SZBTSZ06 18.7068633 0.0094575 1978.00 <2e-16 ***
ORIGIN_SZBTSZ07 17.6292257 0.0141551 1245.43 <2e-16 ***
ORIGIN_SZBTSZ08 18.6989374 0.0109610 1705.94 <2e-16 ***
ORIGIN_SZCBSZ01 18.2189868 0.0548317 332.27 <2e-16 ***
ORIGIN_SZCCSZ01 18.9734563 0.0139450 1360.59 <2e-16 ***
ORIGIN_SZCHSZ01 19.5955119 0.0121035 1619.00 <2e-16 ***
ORIGIN_SZCHSZ02 19.3320960 0.0081620 2368.55 <2e-16 ***
ORIGIN_SZCHSZ03 21.2164518 0.0063552 3338.43 <2e-16 ***
ORIGIN_SZCKSZ01 20.1046845 0.0049333 4075.29 <2e-16 ***
ORIGIN_SZCKSZ02 20.5371946 0.0050256 4086.53 <2e-16 ***
ORIGIN_SZCKSZ03 20.7210560 0.0042184 4912.07 <2e-16 ***
ORIGIN_SZCKSZ04 21.4013886 0.0042524 5032.80 <2e-16 ***
ORIGIN_SZCKSZ05 20.9413146 0.0049434 4236.18 <2e-16 ***
ORIGIN_SZCKSZ06 20.2557727 0.0071832 2819.88 <2e-16 ***
ORIGIN_SZCLSZ01 19.3383703 0.0076634 2523.46 <2e-16 ***
ORIGIN_SZCLSZ02 18.5226956 0.0135522 1366.77 <2e-16 ***
ORIGIN_SZCLSZ03 19.0225512 0.0080145 2373.51 <2e-16 ***
ORIGIN_SZCLSZ04 20.7981505 0.0042400 4905.22 <2e-16 ***
ORIGIN_SZCLSZ05 18.3015625 0.0146815 1246.58 <2e-16 ***
ORIGIN_SZCLSZ06 20.8207386 0.0039567 5262.09 <2e-16 ***
ORIGIN_SZCLSZ07 19.6728958 0.0054199 3629.76 <2e-16 ***
ORIGIN_SZCLSZ08 20.0851929 0.0056956 3526.43 <2e-16 ***
ORIGIN_SZCLSZ09 18.5749589 0.0165415 1122.93 <2e-16 ***
ORIGIN_SZDTSZ02 15.8276209 0.0833992 189.78 <2e-16 ***
ORIGIN_SZDTSZ03 16.2512838 0.0737972 220.22 <2e-16 ***
ORIGIN_SZDTSZ13 16.7744385 0.0312450 536.87 <2e-16 ***
ORIGIN_SZGLSZ01 18.2368248 0.0096104 1897.62 <2e-16 ***
ORIGIN_SZGLSZ02 19.8705255 0.0049014 4054.06 <2e-16 ***
ORIGIN_SZGLSZ03 19.8249435 0.0053109 3732.85 <2e-16 ***
ORIGIN_SZGLSZ04 20.7800335 0.0041261 5036.20 <2e-16 ***
ORIGIN_SZGLSZ05 20.6040494 0.0043049 4786.23 <2e-16 ***
ORIGIN_SZHGSZ01 20.0273475 0.0044824 4468.04 <2e-16 ***
ORIGIN_SZHGSZ02 20.2480656 0.0044575 4542.47 <2e-16 ***
ORIGIN_SZHGSZ03 20.0756442 0.0049003 4096.81 <2e-16 ***
ORIGIN_SZHGSZ04 20.7577748 0.0040465 5129.84 <2e-16 ***
ORIGIN_SZHGSZ05 20.9779992 0.0040123 5228.42 <2e-16 ***
ORIGIN_SZHGSZ06 19.7403058 0.0054229 3640.20 <2e-16 ***
ORIGIN_SZHGSZ07 20.1896268 0.0046051 4384.22 <2e-16 ***
ORIGIN_SZHGSZ08 19.8646492 0.0052403 3790.72 <2e-16 ***
ORIGIN_SZHGSZ09 18.3647736 0.0069196 2654.04 <2e-16 ***
ORIGIN_SZHGSZ10 16.8720475 0.0421046 400.72 <2e-16 ***
ORIGIN_SZJESZ01 20.2673794 0.0046723 4337.79 <2e-16 ***
ORIGIN_SZJESZ02 20.0595982 0.0046503 4313.61 <2e-16 ***
ORIGIN_SZJESZ03 19.9128778 0.0049848 3994.75 <2e-16 ***
ORIGIN_SZJESZ04 18.5053667 0.0099227 1864.94 <2e-16 ***
ORIGIN_SZJESZ05 17.8172930 0.0138840 1283.29 <2e-16 ***
ORIGIN_SZJESZ06 20.0124157 0.0045009 4446.36 <2e-16 ***
ORIGIN_SZJESZ07 18.1821423 0.0117267 1550.49 <2e-16 ***
ORIGIN_SZJESZ08 18.8713046 0.0116456 1620.46 <2e-16 ***
ORIGIN_SZJESZ09 20.5535527 0.0048456 4241.72 <2e-16 ***
ORIGIN_SZJESZ10 18.4922322 0.0191243 966.95 <2e-16 ***
ORIGIN_SZJESZ11 18.2891211 0.0197114 927.85 <2e-16 ***
ORIGIN_SZJWSZ01 20.4912737 0.0063102 3247.35 <2e-16 ***
ORIGIN_SZJWSZ02 20.8236694 0.0042249 4928.82 <2e-16 ***
ORIGIN_SZJWSZ03 21.2587613 0.0039733 5350.40 <2e-16 ***
ORIGIN_SZJWSZ04 20.3816464 0.0046199 4411.67 <2e-16 ***
ORIGIN_SZJWSZ05 18.0607448 0.0128857 1401.61 <2e-16 ***
ORIGIN_SZJWSZ06 18.7015202 0.0107614 1737.83 <2e-16 ***
ORIGIN_SZJWSZ07 17.3991822 0.0277096 627.91 <2e-16 ***
ORIGIN_SZJWSZ08 21.8044465 0.0037356 5836.95 <2e-16 ***
ORIGIN_SZJWSZ09 21.5414930 0.0036033 5978.19 <2e-16 ***
ORIGIN_SZKLSZ01 20.0307712 0.0047868 4184.59 <2e-16 ***
ORIGIN_SZKLSZ02 19.0634769 0.0062318 3059.05 <2e-16 ***
ORIGIN_SZKLSZ03 19.2685700 0.0057172 3370.25 <2e-16 ***
ORIGIN_SZKLSZ04 17.7085067 0.0119809 1478.06 <2e-16 ***
ORIGIN_SZKLSZ05 18.6384471 0.0107596 1732.26 <2e-16 ***
ORIGIN_SZKLSZ06 13.7280296 0.1857160 73.92 <2e-16 ***
ORIGIN_SZKLSZ07 18.6425146 0.0084952 2194.47 <2e-16 ***
ORIGIN_SZKLSZ08 18.0928506 0.0101567 1781.37 <2e-16 ***
ORIGIN_SZLKSZ01 17.8907138 0.0397083 450.55 <2e-16 ***
ORIGIN_SZMDSZ01 18.7605188 0.0285455 657.22 <2e-16 ***
ORIGIN_SZMDSZ02 19.1533927 0.0102815 1862.90 <2e-16 ***
ORIGIN_SZMDSZ03 17.8404982 0.0169690 1051.36 <2e-16 ***
ORIGIN_SZMPSZ01 19.0765941 0.0083937 2272.74 <2e-16 ***
ORIGIN_SZMPSZ02 19.2162527 0.0068331 2812.24 <2e-16 ***
ORIGIN_SZMPSZ03 19.9965344 0.0054569 3664.44 <2e-16 ***
ORIGIN_SZMUSZ02 15.9130765 0.1037472 153.38 <2e-16 ***
ORIGIN_SZNTSZ01 17.0840999 0.0352513 484.64 <2e-16 ***
ORIGIN_SZNTSZ02 16.5792122 0.0233186 710.99 <2e-16 ***
ORIGIN_SZNTSZ03 18.9506415 0.0075957 2494.93 <2e-16 ***
ORIGIN_SZNTSZ05 15.8770261 0.0495825 320.21 <2e-16 ***
ORIGIN_SZNTSZ06 15.3997415 0.0557029 276.46 <2e-16 ***
ORIGIN_SZNVSZ01 20.2241694 0.0043487 4650.65 <2e-16 ***
ORIGIN_SZNVSZ02 19.1897826 0.0065383 2934.97 <2e-16 ***
ORIGIN_SZNVSZ03 18.8854268 0.0080459 2347.22 <2e-16 ***
ORIGIN_SZNVSZ04 18.8940191 0.0090985 2076.61 <2e-16 ***
ORIGIN_SZNVSZ05 17.6278585 0.0168107 1048.61 <2e-16 ***
ORIGIN_SZPGSZ01 19.4825220 0.0122960 1584.46 <2e-16 ***
ORIGIN_SZPGSZ02 19.4726761 0.0073116 2663.25 <2e-16 ***
ORIGIN_SZPGSZ03 20.5515713 0.0045631 4503.86 <2e-16 ***
ORIGIN_SZPGSZ04 21.0527131 0.0041500 5072.89 <2e-16 ***
ORIGIN_SZPGSZ05 20.1436604 0.0057267 3517.48 <2e-16 ***
ORIGIN_SZPLSZ01 19.1832002 0.0120006 1598.53 <2e-16 ***
ORIGIN_SZPLSZ02 18.8752206 0.0149740 1260.53 <2e-16 ***
ORIGIN_SZPLSZ03 18.1000818 0.0371769 486.86 <2e-16 ***
ORIGIN_SZPLSZ04 17.1730559 0.0370280 463.79 <2e-16 ***
ORIGIN_SZPLSZ05 17.9084439 0.0225031 795.82 <2e-16 ***
ORIGIN_SZPNSZ01 21.0804425 0.0044829 4702.41 <2e-16 ***
ORIGIN_SZPNSZ02 19.8822123 0.0111507 1783.05 <2e-16 ***
ORIGIN_SZPNSZ03 17.9293289 0.0193571 926.24 <2e-16 ***
ORIGIN_SZPNSZ04 17.1039594 0.0334954 510.64 <2e-16 ***
ORIGIN_SZPNSZ05 18.2543864 0.0275554 662.46 <2e-16 ***
ORIGIN_SZPRSZ01 19.8777935 0.0117586 1690.49 <2e-16 ***
ORIGIN_SZPRSZ02 21.0751780 0.0044832 4700.88 <2e-16 ***
ORIGIN_SZPRSZ03 20.6717019 0.0045577 4535.55 <2e-16 ***
ORIGIN_SZPRSZ04 19.6365125 0.0074923 2620.90 <2e-16 ***
ORIGIN_SZPRSZ05 21.3132151 0.0042119 5060.24 <2e-16 ***
ORIGIN_SZPRSZ06 18.9314574 0.0117278 1614.24 <2e-16 ***
ORIGIN_SZPRSZ07 17.2822918 0.0162430 1063.98 <2e-16 ***
ORIGIN_SZPRSZ08 19.9267642 0.0062298 3198.62 <2e-16 ***
ORIGIN_SZQTSZ01 19.7357175 0.0066359 2974.08 <2e-16 ***
ORIGIN_SZQTSZ02 19.2082141 0.0061402 3128.26 <2e-16 ***
ORIGIN_SZQTSZ03 19.7771883 0.0056220 3517.83 <2e-16 ***
ORIGIN_SZQTSZ04 18.7114421 0.0072842 2568.76 <2e-16 ***
ORIGIN_SZQTSZ05 19.3049324 0.0062401 3093.69 <2e-16 ***
ORIGIN_SZQTSZ06 19.2643228 0.0065590 2937.09 <2e-16 ***
ORIGIN_SZQTSZ07 18.5697347 0.0095373 1947.06 <2e-16 ***
ORIGIN_SZQTSZ08 19.6147001 0.0061330 3198.21 <2e-16 ***
ORIGIN_SZQTSZ09 19.2550793 0.0069947 2752.82 <2e-16 ***
ORIGIN_SZQTSZ10 19.5801866 0.0064513 3035.07 <2e-16 ***
ORIGIN_SZQTSZ11 17.7398366 0.0143648 1234.95 <2e-16 ***
ORIGIN_SZQTSZ12 17.2420354 0.0186736 923.34 <2e-16 ***
ORIGIN_SZQTSZ13 19.3857418 0.0078878 2457.69 <2e-16 ***
ORIGIN_SZQTSZ14 18.1300753 0.0122096 1484.90 <2e-16 ***
ORIGIN_SZQTSZ15 19.4222283 0.0120871 1606.86 <2e-16 ***
ORIGIN_SZRCSZ01 18.1549045 0.0125108 1451.13 <2e-16 ***
ORIGIN_SZRCSZ06 18.8836400 0.0082161 2298.38 <2e-16 ***
ORIGIN_SZRVSZ01 16.7864438 0.0323796 518.43 <2e-16 ***
ORIGIN_SZRVSZ02 16.4203244 0.0276836 593.14 <2e-16 ***
ORIGIN_SZRVSZ03 16.6453738 0.0244992 679.42 <2e-16 ***
ORIGIN_SZRVSZ04 15.9559213 0.0556344 286.80 <2e-16 ***
ORIGIN_SZRVSZ05 17.0476331 0.0164122 1038.71 <2e-16 ***
ORIGIN_SZSBSZ01 20.0417968 0.0062488 3207.29 <2e-16 ***
ORIGIN_SZSBSZ02 19.1869565 0.0081051 2367.26 <2e-16 ***
ORIGIN_SZSBSZ03 20.5769861 0.0045108 4561.70 <2e-16 ***
ORIGIN_SZSBSZ04 20.5154199 0.0050548 4058.57 <2e-16 ***
ORIGIN_SZSBSZ05 19.6250669 0.0065562 2993.35 <2e-16 ***
ORIGIN_SZSBSZ06 18.8419757 0.0171135 1101.00 <2e-16 ***
ORIGIN_SZSBSZ07 19.4897259 0.0124528 1565.09 <2e-16 ***
ORIGIN_SZSBSZ08 18.7027917 0.0140545 1330.73 <2e-16 ***
ORIGIN_SZSBSZ09 18.8893480 0.0088571 2132.67 <2e-16 ***
ORIGIN_SZSESZ02 20.8962192 0.0041665 5015.34 <2e-16 ***
ORIGIN_SZSESZ03 20.9452771 0.0039737 5270.94 <2e-16 ***
ORIGIN_SZSESZ04 20.6576142 0.0046364 4455.55 <2e-16 ***
ORIGIN_SZSESZ05 19.5170732 0.0058912 3312.92 <2e-16 ***
ORIGIN_SZSESZ06 20.7595824 0.0045747 4537.89 <2e-16 ***
ORIGIN_SZSESZ07 17.6888256 0.0195787 903.47 <2e-16 ***
ORIGIN_SZSGSZ01 19.1359250 0.0085781 2230.79 <2e-16 ***
ORIGIN_SZSGSZ02 18.5614369 0.0102037 1819.10 <2e-16 ***
ORIGIN_SZSGSZ03 19.9933176 0.0050434 3964.23 <2e-16 ***
ORIGIN_SZSGSZ04 20.2426871 0.0047211 4287.71 <2e-16 ***
ORIGIN_SZSGSZ05 18.0114965 0.0107743 1671.70 <2e-16 ***
ORIGIN_SZSGSZ06 20.2593194 0.0044538 4548.76 <2e-16 ***
ORIGIN_SZSGSZ07 19.0763664 0.0062968 3029.54 <2e-16 ***
ORIGIN_SZSKSZ01 19.9222451 0.0085136 2340.04 <2e-16 ***
ORIGIN_SZSKSZ02 20.8633383 0.0055248 3776.33 <2e-16 ***
ORIGIN_SZSKSZ03 19.6528148 0.0080534 2440.33 <2e-16 ***
ORIGIN_SZSKSZ04 18.0754470 0.0275771 655.45 <2e-16 ***
ORIGIN_SZSKSZ05 19.1192521 0.0155579 1228.91 <2e-16 ***
ORIGIN_SZSLSZ01 17.1501034 0.0329384 520.67 <2e-16 ***
ORIGIN_SZSLSZ04 19.5949774 0.0076753 2552.98 <2e-16 ***
ORIGIN_SZSRSZ01 16.9761403 0.0162020 1047.78 <2e-16 ***
ORIGIN_SZTHSZ01 17.9695687 0.0488559 367.81 <2e-16 ***
ORIGIN_SZTHSZ03 18.5427522 0.0223617 829.22 <2e-16 ***
ORIGIN_SZTHSZ04 17.4760374 0.0286247 610.52 <2e-16 ***
ORIGIN_SZTHSZ06 17.8401186 0.0183322 973.16 <2e-16 ***
ORIGIN_SZTMSZ01 20.3406361 0.0056607 3593.33 <2e-16 ***
ORIGIN_SZTMSZ02 22.0307026 0.0037386 5892.85 <2e-16 ***
ORIGIN_SZTMSZ03 21.3451920 0.0040606 5256.65 <2e-16 ***
ORIGIN_SZTMSZ04 20.6611593 0.0049896 4140.87 <2e-16 ***
ORIGIN_SZTMSZ05 19.3323133 0.0112868 1712.82 <2e-16 ***
ORIGIN_SZTNSZ01 17.9513571 0.0128266 1399.54 <2e-16 ***
ORIGIN_SZTNSZ02 18.0267387 0.0098372 1832.51 <2e-16 ***
ORIGIN_SZTNSZ03 17.7253700 0.0134668 1316.23 <2e-16 ***
ORIGIN_SZTNSZ04 19.4474075 0.0073760 2636.59 <2e-16 ***
ORIGIN_SZTPSZ01 19.1078631 0.0065635 2911.25 <2e-16 ***
ORIGIN_SZTPSZ02 20.2837634 0.0041411 4898.18 <2e-16 ***
ORIGIN_SZTPSZ03 19.1838238 0.0059552 3221.37 <2e-16 ***
ORIGIN_SZTPSZ04 19.1805388 0.0054778 3501.53 <2e-16 ***
ORIGIN_SZTPSZ05 19.3718076 0.0058610 3305.18 <2e-16 ***
ORIGIN_SZTPSZ06 19.6605723 0.0054968 3576.70 <2e-16 ***
ORIGIN_SZTPSZ07 19.4499807 0.0060491 3215.36 <2e-16 ***
ORIGIN_SZTPSZ08 18.7996538 0.0095757 1963.28 <2e-16 ***
ORIGIN_SZTPSZ09 19.0025110 0.0067068 2833.31 <2e-16 ***
ORIGIN_SZTPSZ10 18.8899657 0.0076094 2482.46 <2e-16 ***
ORIGIN_SZTPSZ11 19.6277780 0.0053983 3635.93 <2e-16 ***
ORIGIN_SZTPSZ12 19.1471104 0.0065742 2912.45 <2e-16 ***
ORIGIN_SZTSSZ01 17.4901113 0.0478954 365.17 <2e-16 ***
ORIGIN_SZTSSZ02 20.4997466 0.0081850 2504.55 <2e-16 ***
ORIGIN_SZTSSZ03 20.1076553 0.0084728 2373.19 <2e-16 ***
ORIGIN_SZTSSZ04 20.0646610 0.0089008 2254.26 <2e-16 ***
ORIGIN_SZTSSZ05 19.3962067 0.0151392 1281.19 <2e-16 ***
ORIGIN_SZTSSZ06 20.9235857 0.0178278 1173.65 <2e-16 ***
ORIGIN_SZWCSZ01 20.8411600 0.0086519 2408.86 <2e-16 ***
ORIGIN_SZWCSZ02 17.7355404 0.0328889 539.26 <2e-16 ***
ORIGIN_SZWCSZ03 14.9380886 0.1240699 120.40 <2e-16 ***
ORIGIN_SZWDSZ01 21.1969012 0.0037830 5603.23 <2e-16 ***
ORIGIN_SZWDSZ02 20.5930001 0.0044572 4620.13 <2e-16 ***
ORIGIN_SZWDSZ03 21.2521867 0.0041672 5099.85 <2e-16 ***
ORIGIN_SZWDSZ04 21.0702687 0.0048648 4331.13 <2e-16 ***
ORIGIN_SZWDSZ05 20.4008998 0.0051801 3938.35 <2e-16 ***
ORIGIN_SZWDSZ06 20.6669176 0.0049280 4193.78 <2e-16 ***
ORIGIN_SZWDSZ07 19.0500370 0.0082729 2302.71 <2e-16 ***
ORIGIN_SZWDSZ08 19.0816252 0.0080667 2365.49 <2e-16 ***
ORIGIN_SZWDSZ09 21.4182096 0.0040391 5302.73 <2e-16 ***
ORIGIN_SZYSSZ01 19.5355157 0.0057540 3395.14 <2e-16 ***
ORIGIN_SZYSSZ02 20.8737972 0.0048278 4323.64 <2e-16 ***
ORIGIN_SZYSSZ03 21.6614437 0.0040011 5413.81 <2e-16 ***
ORIGIN_SZYSSZ04 20.9305289 0.0043595 4801.10 <2e-16 ***
ORIGIN_SZYSSZ05 20.1727678 0.0058466 3450.34 <2e-16 ***
ORIGIN_SZYSSZ06 19.1481507 0.0116724 1640.47 <2e-16 ***
ORIGIN_SZYSSZ07 18.7919074 0.0141636 1326.78 <2e-16 ***
ORIGIN_SZYSSZ08 19.9733515 0.0061229 3262.07 <2e-16 ***
ORIGIN_SZYSSZ09 20.9366181 0.0040347 5189.15 <2e-16 ***
log(SCHOOL_COUNT) 0.4755516 0.0004701 1011.55 <2e-16 ***
log(RETAIL_COUNT) 0.1796905 0.0001856 968.12 <2e-16 ***
log(DIST) -1.6929522 0.0004093 -4136.01 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for poisson family taken to be 1)
Null deviance: 189463537 on 14471 degrees of freedom
Residual deviance: 15526121 on 14189 degrees of freedom
AIC: 15615824
Number of Fisher Scoring iterations: 6Goodness of Fit
Below code chunk is to create a Rsquared function.
CalcRquared <- function(observed, estimated) {
r <- cor(observed, estimated)
R2 <- r^2
R2
}We can examine how the constraints hold for destinations this time.
CalcRquared(orcSIM_Poisson$data$TRIPS, orcSIM_Poisson$fitted.values) [1] 0.4362208Rsquared shows how well it explain the factor or rate of change of the flow.
Root mean squared error
performance_rmse(orcSIM_Poisson,
normalized = FALSE) # if true, will standardized the value mean =0, set as false,will use the raw values[1] 2613.236Doubly constrained
In this section, we will fit a doubly constrained SIM by using the code chunk below.There is no -1.
dbcSIM_Poisson <- glm(formula = TRIPS ~
ORIGIN_SZ +
DESTIN_SZ +
log(DIST),
family = poisson(link ="log"),
data = inter_zonal_flow,
na.action = na.exclude)
dbcSIM_Poisson
Call: glm(formula = TRIPS ~ ORIGIN_SZ + DESTIN_SZ + log(DIST), family = poisson(link = "log"),
data = inter_zonal_flow, na.action = na.exclude)
Coefficients:
(Intercept) ORIGIN_SZAMSZ02 ORIGIN_SZAMSZ03 ORIGIN_SZAMSZ04
21.8312374 0.5263502 0.3139982 -0.2146257
ORIGIN_SZAMSZ05 ORIGIN_SZAMSZ06 ORIGIN_SZAMSZ07 ORIGIN_SZAMSZ08
-0.1890446 0.1539201 -0.9826565 -0.4488417
ORIGIN_SZAMSZ09 ORIGIN_SZAMSZ10 ORIGIN_SZAMSZ11 ORIGIN_SZAMSZ12
0.0713474 0.4313742 -1.4712226 -1.7250733
ORIGIN_SZBDSZ01 ORIGIN_SZBDSZ02 ORIGIN_SZBDSZ03 ORIGIN_SZBDSZ04
0.8810576 0.1100240 0.3606166 1.4624347
ORIGIN_SZBDSZ05 ORIGIN_SZBDSZ06 ORIGIN_SZBDSZ07 ORIGIN_SZBDSZ08
0.6207557 0.6712973 -1.2338669 -1.0444562
ORIGIN_SZBKSZ01 ORIGIN_SZBKSZ02 ORIGIN_SZBKSZ03 ORIGIN_SZBKSZ04
-0.2838426 0.5550522 0.7396640 -0.2242451
ORIGIN_SZBKSZ05 ORIGIN_SZBKSZ06 ORIGIN_SZBKSZ07 ORIGIN_SZBKSZ08
-0.2371614 -0.1413812 0.7089989 -0.0907065
ORIGIN_SZBKSZ09 ORIGIN_SZBLSZ01 ORIGIN_SZBLSZ02 ORIGIN_SZBLSZ03
-0.1775146 -2.3684539 -2.8078475 -3.3122763
ORIGIN_SZBLSZ04 ORIGIN_SZBMSZ01 ORIGIN_SZBMSZ02 ORIGIN_SZBMSZ03
-2.6770542 0.0618035 -1.3535767 -0.7569095
ORIGIN_SZBMSZ04 ORIGIN_SZBMSZ05 ORIGIN_SZBMSZ06 ORIGIN_SZBMSZ07
-0.2949304 -2.6131992 -3.0315024 -0.6962524
ORIGIN_SZBMSZ08 ORIGIN_SZBMSZ09 ORIGIN_SZBMSZ10 ORIGIN_SZBMSZ11
-0.9310730 -1.2911253 -1.6687004 -1.1152794
ORIGIN_SZBMSZ12 ORIGIN_SZBMSZ13 ORIGIN_SZBMSZ14 ORIGIN_SZBMSZ15
-1.5323954 -0.6267376 -1.0475467 -0.5049444
ORIGIN_SZBMSZ16 ORIGIN_SZBMSZ17 ORIGIN_SZBPSZ01 ORIGIN_SZBPSZ02
-1.5282897 -1.5722349 0.5814175 0.0875442
ORIGIN_SZBPSZ03 ORIGIN_SZBPSZ04 ORIGIN_SZBPSZ05 ORIGIN_SZBPSZ06
0.3358227 0.6507586 0.9502124 -1.0480314
ORIGIN_SZBPSZ07 ORIGIN_SZBSSZ01 ORIGIN_SZBSSZ02 ORIGIN_SZBSSZ03
-0.5467931 0.2998334 0.2841036 -0.2331505
ORIGIN_SZBTSZ01 ORIGIN_SZBTSZ02 ORIGIN_SZBTSZ03 ORIGIN_SZBTSZ04
0.0987284 -0.6261229 -0.4326963 -1.4998668
ORIGIN_SZBTSZ05 ORIGIN_SZBTSZ06 ORIGIN_SZBTSZ07 ORIGIN_SZBTSZ08
-0.9564768 -1.2853131 -2.3870991 -1.3715855
ORIGIN_SZCBSZ01 ORIGIN_SZCCSZ01 ORIGIN_SZCHSZ01 ORIGIN_SZCHSZ02
-3.5940232 -0.7008220 -0.9109524 -0.8566547
ORIGIN_SZCHSZ03 ORIGIN_SZCKSZ01 ORIGIN_SZCKSZ02 ORIGIN_SZCKSZ03
1.1153731 0.3001815 0.7185711 1.1389824
ORIGIN_SZCKSZ04 ORIGIN_SZCKSZ05 ORIGIN_SZCKSZ06 ORIGIN_SZCLSZ01
1.6281772 0.8338470 0.6528993 -0.7174758
ORIGIN_SZCLSZ02 ORIGIN_SZCLSZ03 ORIGIN_SZCLSZ04 ORIGIN_SZCLSZ05
-1.7513100 -1.0362873 0.6160017 -2.1005122
ORIGIN_SZCLSZ06 ORIGIN_SZCLSZ07 ORIGIN_SZCLSZ08 ORIGIN_SZCLSZ09
0.7252108 -0.5343482 -0.2153408 -1.8019961
ORIGIN_SZDTSZ02 ORIGIN_SZDTSZ03 ORIGIN_SZDTSZ13 ORIGIN_SZGLSZ01
-3.9057711 -3.4152419 -3.0183438 -1.7812384
ORIGIN_SZGLSZ02 ORIGIN_SZGLSZ03 ORIGIN_SZGLSZ04 ORIGIN_SZGLSZ05
-0.1074991 -0.2461106 0.8657186 0.5871393
ORIGIN_SZHGSZ01 ORIGIN_SZHGSZ02 ORIGIN_SZHGSZ03 ORIGIN_SZHGSZ04
0.3543819 0.4218178 0.2411309 0.8180622
ORIGIN_SZHGSZ05 ORIGIN_SZHGSZ06 ORIGIN_SZHGSZ07 ORIGIN_SZHGSZ08
1.2173687 -0.1826300 0.3172839 -0.1151369
ORIGIN_SZHGSZ09 ORIGIN_SZHGSZ10 ORIGIN_SZJESZ01 ORIGIN_SZJESZ02
-1.2873441 -3.3783178 0.4859234 0.1766088
ORIGIN_SZJESZ03 ORIGIN_SZJESZ04 ORIGIN_SZJESZ05 ORIGIN_SZJESZ06
-0.2177441 -1.5532182 -2.3332926 0.3007382
ORIGIN_SZJESZ07 ORIGIN_SZJESZ08 ORIGIN_SZJESZ09 ORIGIN_SZJESZ10
-1.9687994 -1.3032070 0.5762635 -1.4423113
ORIGIN_SZJESZ11 ORIGIN_SZJWSZ01 ORIGIN_SZJWSZ02 ORIGIN_SZJWSZ03
-1.9720897 0.3808627 0.7963999 1.5429636
ORIGIN_SZJWSZ04 ORIGIN_SZJWSZ05 ORIGIN_SZJWSZ06 ORIGIN_SZJWSZ07
0.6410760 -2.1571049 -1.5174532 -2.7089963
ORIGIN_SZJWSZ08 ORIGIN_SZJWSZ09 ORIGIN_SZKLSZ01 ORIGIN_SZKLSZ02
1.5343415 1.8837410 0.1081286 -0.8844695
ORIGIN_SZKLSZ03 ORIGIN_SZKLSZ04 ORIGIN_SZKLSZ05 ORIGIN_SZKLSZ06
-0.6872640 -2.2090319 -1.1728726 -6.1162315
ORIGIN_SZKLSZ07 ORIGIN_SZKLSZ08 ORIGIN_SZLKSZ01 ORIGIN_SZMDSZ01
-1.4082749 -1.7781551 -2.0531568 -0.8825639
ORIGIN_SZMDSZ02 ORIGIN_SZMDSZ03 ORIGIN_SZMPSZ01 ORIGIN_SZMPSZ02
-0.6219993 -2.0840156 -0.9659093 -1.0411153
ORIGIN_SZMPSZ03 ORIGIN_SZMUSZ02 ORIGIN_SZNTSZ01 ORIGIN_SZNTSZ02
0.0001659 -3.7599031 -3.0388366 -3.4230640
ORIGIN_SZNTSZ03 ORIGIN_SZNTSZ05 ORIGIN_SZNTSZ06 ORIGIN_SZNVSZ01
-0.9094796 -4.0861681 -3.9497128 0.3235636
ORIGIN_SZNVSZ02 ORIGIN_SZNVSZ03 ORIGIN_SZNVSZ04 ORIGIN_SZNVSZ05
-0.6946748 -1.0540196 -0.9897977 -2.2578432
ORIGIN_SZPGSZ01 ORIGIN_SZPGSZ02 ORIGIN_SZPGSZ03 ORIGIN_SZPGSZ04
0.2399827 -0.3352342 0.9515148 1.3998952
ORIGIN_SZPGSZ05 ORIGIN_SZPLSZ01 ORIGIN_SZPLSZ02 ORIGIN_SZPLSZ03
0.4451629 -0.9705918 -1.0670151 -2.1229124
ORIGIN_SZPLSZ04 ORIGIN_SZPLSZ05 ORIGIN_SZPNSZ01 ORIGIN_SZPNSZ02
-3.0911932 -2.1705708 0.9052637 -0.1720425
ORIGIN_SZPNSZ03 ORIGIN_SZPNSZ04 ORIGIN_SZPNSZ05 ORIGIN_SZPRSZ01
-2.3973459 -3.4483689 -2.0588530 -0.6399015
ORIGIN_SZPRSZ02 ORIGIN_SZPRSZ03 ORIGIN_SZPRSZ04 ORIGIN_SZPRSZ05
0.8122270 0.3990960 -0.8485348 0.8008791
ORIGIN_SZPRSZ06 ORIGIN_SZPRSZ07 ORIGIN_SZPRSZ08 ORIGIN_SZQTSZ01
-1.4498806 -3.2025045 -0.5862269 -0.1859270
ORIGIN_SZQTSZ02 ORIGIN_SZQTSZ03 ORIGIN_SZQTSZ04 ORIGIN_SZQTSZ05
-0.8715122 -0.1259816 -1.4620032 -0.6675643
ORIGIN_SZQTSZ06 ORIGIN_SZQTSZ07 ORIGIN_SZQTSZ08 ORIGIN_SZQTSZ09
-0.8190026 -1.5189403 -0.4976238 -0.9006162
ORIGIN_SZQTSZ10 ORIGIN_SZQTSZ11 ORIGIN_SZQTSZ12 ORIGIN_SZQTSZ13
-0.6690184 -2.5203437 -3.0461675 -0.7501068
ORIGIN_SZQTSZ14 ORIGIN_SZQTSZ15 ORIGIN_SZRCSZ01 ORIGIN_SZRCSZ06
-1.9321849 -0.9576828 -1.8167951 -0.5560563
ORIGIN_SZRVSZ01 ORIGIN_SZRVSZ02 ORIGIN_SZRVSZ03 ORIGIN_SZRVSZ04
-2.8862570 -3.1555662 -2.9836089 -3.5520422
ORIGIN_SZRVSZ05 ORIGIN_SZSBSZ01 ORIGIN_SZSBSZ02 ORIGIN_SZSBSZ03
-2.5866584 0.2867444 -0.9012334 0.8311038
ORIGIN_SZSBSZ04 ORIGIN_SZSBSZ05 ORIGIN_SZSBSZ06 ORIGIN_SZSBSZ07
0.4044170 -0.2661845 -0.9023075 0.0505870
ORIGIN_SZSBSZ08 ORIGIN_SZSBSZ09 ORIGIN_SZSESZ02 ORIGIN_SZSESZ03
-1.1158011 -0.9682835 1.1452735 1.2815277
ORIGIN_SZSESZ04 ORIGIN_SZSESZ05 ORIGIN_SZSESZ06 ORIGIN_SZSESZ07
0.8085857 -0.2329413 1.0576879 -2.3165908
ORIGIN_SZSGSZ01 ORIGIN_SZSGSZ02 ORIGIN_SZSGSZ03 ORIGIN_SZSGSZ04
-0.6606350 -1.3638984 0.1152591 0.2954067
ORIGIN_SZSGSZ05 ORIGIN_SZSGSZ06 ORIGIN_SZSGSZ07 ORIGIN_SZSKSZ01
-2.0792678 0.4563227 -0.8955254 -0.3184402
ORIGIN_SZSKSZ02 ORIGIN_SZSKSZ03 ORIGIN_SZSKSZ04 ORIGIN_SZSKSZ05
1.1160484 -0.2566692 -1.5781827 -0.2724361
ORIGIN_SZSLSZ01 ORIGIN_SZSLSZ04 ORIGIN_SZSRSZ01 ORIGIN_SZTHSZ01
-2.4458625 -0.0987076 -2.2584977 -2.5878524
ORIGIN_SZTHSZ03 ORIGIN_SZTHSZ04 ORIGIN_SZTHSZ06 ORIGIN_SZTMSZ01
-0.8101746 -2.4186655 -1.7080541 -0.2193476
ORIGIN_SZTMSZ02 ORIGIN_SZTMSZ03 ORIGIN_SZTMSZ04 ORIGIN_SZTMSZ05
1.7772464 1.0051343 0.1642370 -1.2878706
ORIGIN_SZTNSZ01 ORIGIN_SZTNSZ02 ORIGIN_SZTNSZ03 ORIGIN_SZTNSZ04
-1.7163504 -1.6508988 -2.1545577 -0.3949120
ORIGIN_SZTPSZ01 ORIGIN_SZTPSZ02 ORIGIN_SZTPSZ03 ORIGIN_SZTPSZ04
-0.8058100 0.5369060 -0.7779333 -0.8153581
ORIGIN_SZTPSZ05 ORIGIN_SZTPSZ06 ORIGIN_SZTPSZ07 ORIGIN_SZTPSZ08
-0.5073676 0.0847301 -0.5839519 -1.0577941
ORIGIN_SZTPSZ09 ORIGIN_SZTPSZ10 ORIGIN_SZTPSZ11 ORIGIN_SZTPSZ12
-0.9067707 -1.1362091 -0.2374621 -0.8028874
ORIGIN_SZTSSZ01 ORIGIN_SZTSSZ02 ORIGIN_SZTSSZ03 ORIGIN_SZTSSZ04
-2.7809271 0.0425804 0.1142369 -0.6186261
ORIGIN_SZTSSZ05 ORIGIN_SZTSSZ06 ORIGIN_SZWCSZ01 ORIGIN_SZWCSZ02
-1.0846732 0.3980173 1.3545143 -2.9863278
ORIGIN_SZWCSZ03 ORIGIN_SZWDSZ01 ORIGIN_SZWDSZ02 ORIGIN_SZWDSZ03
-5.0504916 1.5238429 0.2832576 1.3702524
ORIGIN_SZWDSZ04 ORIGIN_SZWDSZ05 ORIGIN_SZWDSZ06 ORIGIN_SZWDSZ07
1.0248225 0.2356778 0.3146925 -1.4971897
ORIGIN_SZWDSZ08 ORIGIN_SZWDSZ09 ORIGIN_SZYSSZ01 ORIGIN_SZYSSZ02
-0.8894079 1.4437633 -0.2519398 0.8726785
ORIGIN_SZYSSZ03 ORIGIN_SZYSSZ04 ORIGIN_SZYSSZ05 ORIGIN_SZYSSZ06
1.7868139 0.8418040 0.4292096 -0.7459961
ORIGIN_SZYSSZ07 ORIGIN_SZYSSZ08 ORIGIN_SZYSSZ09 DESTIN_SZAMSZ02
-0.8422281 0.1829428 1.1159712 0.0694567
DESTIN_SZAMSZ03 DESTIN_SZAMSZ04 DESTIN_SZAMSZ05 DESTIN_SZAMSZ06
0.0760100 -1.1306391 -1.0751133 -0.9624298
DESTIN_SZAMSZ07 DESTIN_SZAMSZ08 DESTIN_SZAMSZ09 DESTIN_SZAMSZ10
-1.5060319 -0.4813202 -1.0220675 0.1235142
DESTIN_SZAMSZ11 DESTIN_SZAMSZ12 DESTIN_SZBDSZ01 DESTIN_SZBDSZ02
-0.8917993 0.0195208 0.9736349 -0.1969470
DESTIN_SZBDSZ03 DESTIN_SZBDSZ04 DESTIN_SZBDSZ05 DESTIN_SZBDSZ06
0.1266471 1.1608485 0.9293840 0.4090567
DESTIN_SZBDSZ07 DESTIN_SZBDSZ08 DESTIN_SZBKSZ01 DESTIN_SZBKSZ02
-0.8171478 -1.5895287 -1.3793311 -0.5253670
DESTIN_SZBKSZ03 DESTIN_SZBKSZ04 DESTIN_SZBKSZ05 DESTIN_SZBKSZ06
-1.0095362 -0.5662858 -0.9406607 -1.3129276
DESTIN_SZBKSZ07 DESTIN_SZBKSZ08 DESTIN_SZBKSZ09 DESTIN_SZBLSZ01
0.0120605 -1.3658471 -0.1771310 -0.8175223
DESTIN_SZBLSZ02 DESTIN_SZBLSZ03 DESTIN_SZBLSZ04 DESTIN_SZBMSZ01
0.1631280 1.2598494 -0.5642975 0.6921844
DESTIN_SZBMSZ02 DESTIN_SZBMSZ03 DESTIN_SZBMSZ04 DESTIN_SZBMSZ05
-0.1209392 -0.2373881 -0.0407117 -0.2363309
DESTIN_SZBMSZ06 DESTIN_SZBMSZ07 DESTIN_SZBMSZ08 DESTIN_SZBMSZ09
-1.1930710 0.4625103 -0.8604731 -2.1290239
DESTIN_SZBMSZ10 DESTIN_SZBMSZ11 DESTIN_SZBMSZ12 DESTIN_SZBMSZ13
-1.4617153 -1.3234050 -0.8399230 0.1366529
DESTIN_SZBMSZ14 DESTIN_SZBMSZ15 DESTIN_SZBMSZ16 DESTIN_SZBMSZ17
-1.0491968 -0.6726684 -1.4011734 -1.5682752
DESTIN_SZBPSZ01 DESTIN_SZBPSZ02 DESTIN_SZBPSZ03 DESTIN_SZBPSZ04
-1.1120017 -2.0833466 -1.6937265 -0.7964999
DESTIN_SZBPSZ05 DESTIN_SZBPSZ06 DESTIN_SZBPSZ07 DESTIN_SZBSSZ01
0.2109118 -1.1808365 -0.2077428 0.3164175
DESTIN_SZBSSZ02 DESTIN_SZBSSZ03 DESTIN_SZBTSZ01 DESTIN_SZBTSZ02
-0.4852688 0.4130432 0.6215095 -0.0145076
DESTIN_SZBTSZ03 DESTIN_SZBTSZ04 DESTIN_SZBTSZ05 DESTIN_SZBTSZ06
0.4919981 -0.6957555 0.3329814 -0.1333295
DESTIN_SZBTSZ07 DESTIN_SZBTSZ08 DESTIN_SZCBSZ01 DESTIN_SZCCSZ01
-1.4449581 -0.7079056 -5.7344725 -0.0009541
DESTIN_SZCHSZ01 DESTIN_SZCHSZ02 DESTIN_SZCHSZ03 DESTIN_SZCKSZ01
-0.2083016 0.5369606 2.5530638 -0.5725975
DESTIN_SZCKSZ02 DESTIN_SZCKSZ03 DESTIN_SZCKSZ04 DESTIN_SZCKSZ05
-1.1181852 0.1156680 -0.8647725 -1.1641791
DESTIN_SZCKSZ06 DESTIN_SZCLSZ01 DESTIN_SZCLSZ02 DESTIN_SZCLSZ03
-0.4397612 0.1930552 -2.0436501 -0.9338571
DESTIN_SZCLSZ04 DESTIN_SZCLSZ05 DESTIN_SZCLSZ06 DESTIN_SZCLSZ07
0.0532041 -1.0782781 0.4068171 -0.3579507
DESTIN_SZCLSZ08 DESTIN_SZCLSZ09 DESTIN_SZDTSZ02 DESTIN_SZDTSZ03
-0.2487993 0.1611080 -1.7308348 -0.5994253
DESTIN_SZDTSZ13 DESTIN_SZGLSZ01 DESTIN_SZGLSZ02 DESTIN_SZGLSZ03
-1.3685031 -0.0910001 -0.0692224 0.6493421
DESTIN_SZGLSZ04 DESTIN_SZGLSZ05 DESTIN_SZHGSZ01 DESTIN_SZHGSZ02
0.9327947 0.8161728 0.0658625 -0.8134329
DESTIN_SZHGSZ03 DESTIN_SZHGSZ04 DESTIN_SZHGSZ05 DESTIN_SZHGSZ06
-1.3546132 -0.4500588 -0.5026431 -0.8673686
DESTIN_SZHGSZ07 DESTIN_SZHGSZ08 DESTIN_SZHGSZ09 DESTIN_SZHGSZ10
0.0560490 -0.0443189 -0.0126355 -3.5821793
DESTIN_SZJESZ01 DESTIN_SZJESZ02 DESTIN_SZJESZ03 DESTIN_SZJESZ04
-0.3704281 -0.7369159 -0.8985484 -1.0511995
DESTIN_SZJESZ05 DESTIN_SZJESZ06 DESTIN_SZJESZ07 DESTIN_SZJESZ08
-1.5324974 0.3105267 -1.3234483 -0.6559742
DESTIN_SZJESZ09 DESTIN_SZJESZ10 DESTIN_SZJESZ11 DESTIN_SZJWSZ01
0.2663752 0.8529026 0.5559641 -0.9790971
DESTIN_SZJWSZ02 DESTIN_SZJWSZ03 DESTIN_SZJWSZ04 DESTIN_SZJWSZ05
-0.8746590 0.5689062 0.4520963 -1.0249671
DESTIN_SZJWSZ06 DESTIN_SZJWSZ07 DESTIN_SZJWSZ08 DESTIN_SZJWSZ09
-0.7451483 -2.8453099 -0.3372309 1.0505330
DESTIN_SZKLSZ01 DESTIN_SZKLSZ02 DESTIN_SZKLSZ03 DESTIN_SZKLSZ04
-0.2334836 -0.5416148 -0.8026495 -1.2918594
DESTIN_SZKLSZ05 DESTIN_SZKLSZ06 DESTIN_SZKLSZ07 DESTIN_SZKLSZ08
-0.4069101 -2.5333101 -0.6623343 -0.1408205
DESTIN_SZLKSZ01 DESTIN_SZMDSZ01 DESTIN_SZMDSZ02 DESTIN_SZMDSZ03
-1.2639235 -1.5655800 -0.9767682 -3.3328109
DESTIN_SZMPSZ01 DESTIN_SZMPSZ02 DESTIN_SZMPSZ03 DESTIN_SZMUSZ02
-0.4552859 -0.5386560 0.4952000 -1.4434175
DESTIN_SZNTSZ01 DESTIN_SZNTSZ02 DESTIN_SZNTSZ03 DESTIN_SZNTSZ05
-2.9194067 -1.3780179 -0.5044699 -2.0017134
DESTIN_SZNTSZ06 DESTIN_SZNVSZ01 DESTIN_SZNVSZ02 DESTIN_SZNVSZ03
-3.8120537 -0.1071506 -0.0274710 0.1076352
DESTIN_SZNVSZ04 DESTIN_SZNVSZ05 DESTIN_SZPGSZ01 DESTIN_SZPGSZ02
-1.2087250 -1.0058290 -1.2029931 -1.2878671
DESTIN_SZPGSZ03 DESTIN_SZPGSZ04 DESTIN_SZPGSZ05 DESTIN_SZPLSZ01
-0.1520894 -0.1985959 -1.5290983 -0.3567934
DESTIN_SZPLSZ02 DESTIN_SZPLSZ03 DESTIN_SZPLSZ04 DESTIN_SZPLSZ05
-1.7114351 -0.3241427 -1.7117196 -0.5086379
DESTIN_SZPNSZ01 DESTIN_SZPNSZ02 DESTIN_SZPNSZ03 DESTIN_SZPNSZ04
0.2026781 0.8313754 -0.4041254 1.5814539
DESTIN_SZPNSZ05 DESTIN_SZPRSZ01 DESTIN_SZPRSZ02 DESTIN_SZPRSZ03
1.1823430 -1.1057553 0.0895099 0.6921925
DESTIN_SZPRSZ04 DESTIN_SZPRSZ05 DESTIN_SZPRSZ06 DESTIN_SZPRSZ07
-0.2848336 0.1744480 0.4279206 -1.5123108
DESTIN_SZPRSZ08 DESTIN_SZQTSZ01 DESTIN_SZQTSZ02 DESTIN_SZQTSZ03
-0.5650226 -0.5952360 -0.7728170 -0.5066812
DESTIN_SZQTSZ04 DESTIN_SZQTSZ05 DESTIN_SZQTSZ06 DESTIN_SZQTSZ07
-0.6398414 -0.4354527 -0.6597391 -0.9392696
DESTIN_SZQTSZ08 DESTIN_SZQTSZ09 DESTIN_SZQTSZ10 DESTIN_SZQTSZ11
0.4617774 -0.3174497 0.1993449 0.2551535
DESTIN_SZQTSZ12 DESTIN_SZQTSZ13 DESTIN_SZQTSZ14 DESTIN_SZQTSZ15
-0.1662603 0.5500978 0.5364435 1.3611043
DESTIN_SZRCSZ01 DESTIN_SZRCSZ06 DESTIN_SZRVSZ01 DESTIN_SZRVSZ02
-0.1034049 -1.0633902 -1.5486221 -2.4092611
DESTIN_SZRVSZ03 DESTIN_SZRVSZ04 DESTIN_SZRVSZ05 DESTIN_SZSBSZ01
-1.5172079 -1.1663615 -2.2404292 -1.3783780
DESTIN_SZSBSZ02 DESTIN_SZSBSZ03 DESTIN_SZSBSZ04 DESTIN_SZSBSZ05
-1.4445213 0.5149906 0.2389086 -1.2737442
DESTIN_SZSBSZ06 DESTIN_SZSBSZ07 DESTIN_SZSBSZ08 DESTIN_SZSBSZ09
-1.8683520 -0.5993154 0.8156302 0.0900611
DESTIN_SZSESZ02 DESTIN_SZSESZ03 DESTIN_SZSESZ04 DESTIN_SZSESZ05
-0.6397704 0.1714103 -1.0596175 -0.8071891
DESTIN_SZSESZ06 DESTIN_SZSESZ07 DESTIN_SZSGSZ01 DESTIN_SZSGSZ02
-0.5580934 -3.1448863 -0.1795225 -0.2986570
DESTIN_SZSGSZ03 DESTIN_SZSGSZ04 DESTIN_SZSGSZ05 DESTIN_SZSGSZ06
-0.4074671 -0.1505164 -1.9908372 0.6715268
DESTIN_SZSGSZ07 DESTIN_SZSISZ01 DESTIN_SZSKSZ01 DESTIN_SZSKSZ02
-0.4494757 -0.5517983 -0.4749154 0.9400302
DESTIN_SZSKSZ03 DESTIN_SZSKSZ04 DESTIN_SZSKSZ05 DESTIN_SZSLSZ01
-0.2800377 -1.2570212 -0.2600474 -0.7775604
DESTIN_SZSLSZ04 DESTIN_SZSRSZ01 DESTIN_SZTHSZ01 DESTIN_SZTHSZ03
-0.8586515 -1.1370887 -4.3259988 -2.6632914
DESTIN_SZTHSZ04 DESTIN_SZTHSZ06 DESTIN_SZTMSZ01 DESTIN_SZTMSZ02
-3.1000906 -2.5952642 -0.2092828 1.8238139
DESTIN_SZTMSZ03 DESTIN_SZTMSZ04 DESTIN_SZTMSZ05 DESTIN_SZTNSZ01
0.8518259 1.0222812 0.6323777 -0.3336078
DESTIN_SZTNSZ02 DESTIN_SZTNSZ03 DESTIN_SZTNSZ04 DESTIN_SZTPSZ01
-1.0820469 -1.4186505 -0.3058199 -0.4872299
DESTIN_SZTPSZ02 DESTIN_SZTPSZ03 DESTIN_SZTPSZ04 DESTIN_SZTPSZ05
0.7158441 -0.4314229 -1.5898245 -1.0445550
DESTIN_SZTPSZ06 DESTIN_SZTPSZ07 DESTIN_SZTPSZ08 DESTIN_SZTPSZ09
-0.4319582 -2.1602303 -1.1920493 -0.2022481
DESTIN_SZTPSZ10 DESTIN_SZTPSZ11 DESTIN_SZTPSZ12 DESTIN_SZTSSZ01
-1.2464793 -0.0808445 -0.6784376 -1.5845062
DESTIN_SZTSSZ02 DESTIN_SZTSSZ03 DESTIN_SZTSSZ04 DESTIN_SZTSSZ05
-0.1886010 0.6525526 0.5285464 1.4670106
DESTIN_SZTSSZ06 DESTIN_SZWCSZ01 DESTIN_SZWCSZ02 DESTIN_SZWCSZ03
2.5043588 1.9787931 -2.2593108 -3.1897655
DESTIN_SZWDSZ01 DESTIN_SZWDSZ02 DESTIN_SZWDSZ03 DESTIN_SZWDSZ04
1.0476108 -1.3176990 0.3432057 -0.7895927
DESTIN_SZWDSZ05 DESTIN_SZWDSZ06 DESTIN_SZWDSZ07 DESTIN_SZWDSZ08
-0.8751665 -0.2106221 -1.6050834 -0.5124717
DESTIN_SZWDSZ09 DESTIN_SZYSSZ01 DESTIN_SZYSSZ02 DESTIN_SZYSSZ03
0.3813542 0.0853753 -0.3227172 -0.4151283
DESTIN_SZYSSZ04 DESTIN_SZYSSZ05 DESTIN_SZYSSZ06 DESTIN_SZYSSZ07
-0.4637327 -1.5888242 -1.4606209 -0.7839065
DESTIN_SZYSSZ08 DESTIN_SZYSSZ09 log(DIST)
0.6265412 0.1520067 -1.8468315
Degrees of Freedom: 14470 Total (i.e. Null); 13912 Residual
Null Deviance: 47090000
Residual Deviance: 10420000 AIC: 10510000Model comparison
Another useful model performance measure for continuous dependent variable is Root Mean Squared Error. In this sub-section, you will learn how to use compare_performance() of performance package
First of all, let us create a list called model_list by using the code chun below.
